Spring-Loaded Pressure Relief Valves VCP

Hundreds of thousands installed worldwide

Introduction

Spring-Loaded Pressure Relief Valves 1
Spring-Loaded Pressure Relief Valves 2
Spring-Loaded Pressure Relief Valves 3
VCP Pressure Relief Valves are the last resort when abnormal pressure conditions endanger the silo structure. This is why sudden excess or suction pressure inside the silo must be dealt with instantaneously. Even though ideally a Pressure Relief Valve should never have to go into action, it must be efficient and reliable if needed.
With hundreds of thousands installed worldwide, VCP Pressure Relief Valves have given evidence of being totally reliable under most different conditions.
For applications in the food industry a version compliant with European Regulation (EC) No. 1935/2004 is available.

Comfortable handling thanks to lightweight design and compact overall dimensions
Comfortable handling thanks to lightweight design and compact overall dimensions
Easy to fit
Easy to fit
Quick maintenance
Quick maintenance

Technical Specs

Description

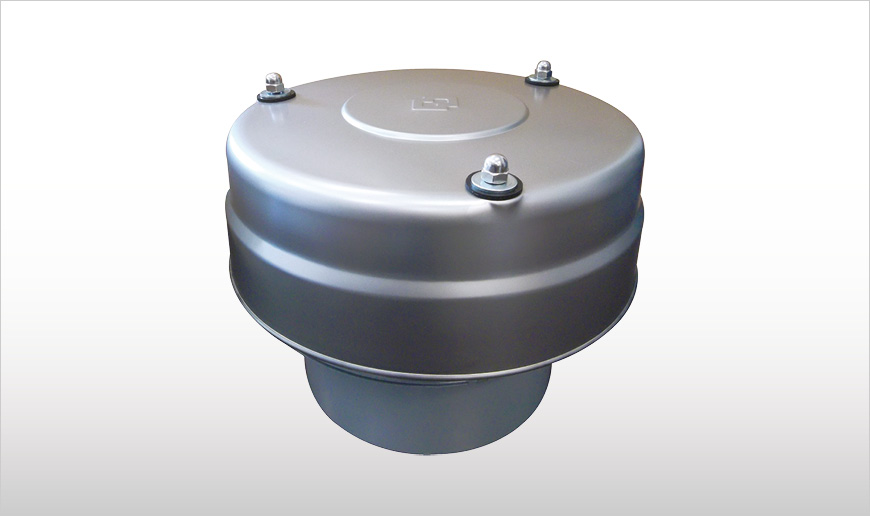

VCP Pressure Relief Valves consist of a cylindrical casing with a bottom flange to be connected with a spigot welded on the silo roof, a disc shape inner steel lid for negative pressure operation held in position by a central spring rod, an outside steel ring for excess pressure kept in position by three spring rods, gaskets, and a weather protection cover.

Spring-Loaded Pressure Relief Valves

Function

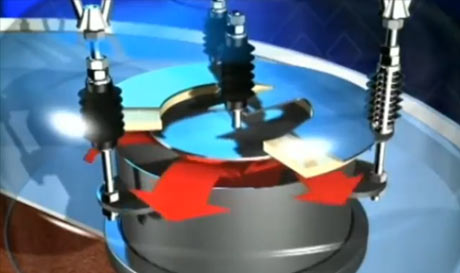

Helical springs keep the valve lids closed when the pressure value remains within the preset limits. The three outside spring rods keep the external ring-shaped lid firmly closed as long as the force generated by the pressure inside the silo does not overcome the spring force. Once the pressure exceeds the pre-set value the lid is pushed up and pressure can escape. The smaller lid covers the central circular opening of the external lid from below. It is held in the middle by a single spring rod and is pressed onto the external lid by the normal air pressure inside the silo. In the event of suction pressure the spring is compressed and allows the lid to drop. The air entering the silo from outside ensures rapid pressure balance and pushes the central lid back up into "closed" position.
For applications in the food industry a version compliant with European Regulation (EC) No. 1935/2004 is available.



Features

  • Two sizes available
  • Flow rate: up to 13,000 m3/h (7,650 cfm)
  • Painted carbon steel or 304 stainless steel casing
  • Stainless steel weather protection cover
  • Mechanical set-up for inductive signalling sensor
  • Preset for maximum negative pressure of -0.005 bar (-0.07 psi) and maximum excess pressure of 0.05 bar (0.72 psi)

Benefits

  • Lightweight design and reduced overall dimensions for extremely comfortable handling
  • Easy to fit
  • Quick maintenance

Options

  • ATEX-certified version
  • Compliance with European Regulation (EC) No. 1935/2004
  • Optionally different settings available
  • Inspection hatch
  • Inductive sensors
  • Bird net

Multimedia

VCP VHS - Pressure Relief Valve

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

VCP_1015_EDIT.pdf
Latest edition: October 2015
English, French, German, Italian
Code: 063001499
