Membrane Pressure Relief Valves VHS-C

The ultimate safety net against abnormal conditions inside bins or silos

Introduction

Membrane Pressure Relief Valves 1
Membrane Pressure Relief Valves 2
Membrane Pressure Relief Valves 3
As its predecessor, the VHS-type, the VHS-C Pressure Relief Valve is the last safety net when abnormal pressure conditions endanger the silo structure. This is why sudden excess or suction pressure inside the silo has to be dealt with instantly. Even though ideally a VHS-C Pressure Relief Valve should never have to go into action, it must be efficient and reliable if needed.

High safety level thanks to conveyed flow and reduced emissions
High safety level thanks to conveyed flow and reduced emissions
Lightweight and corrosion-free
Lightweight and corrosion-free
Higher performance at a competitive price
Higher performance at a competitive price

Technical Specs

Description

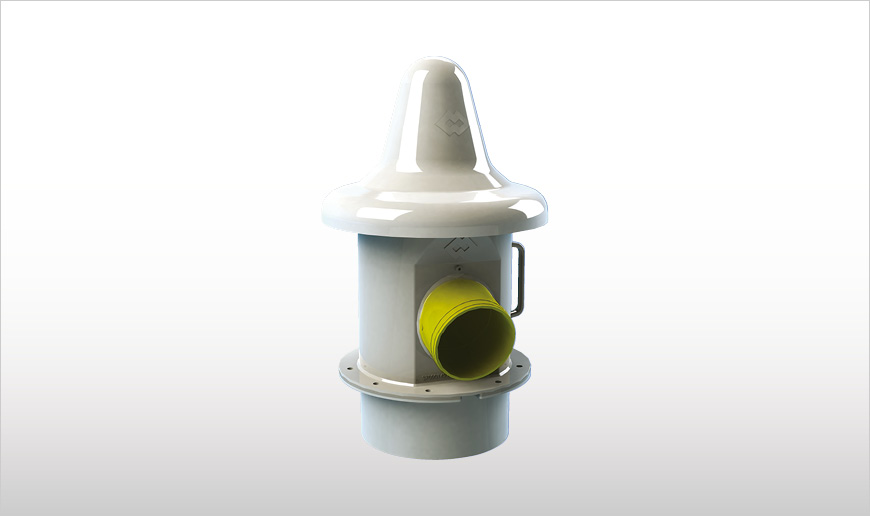

VHS-C Pressure Relief Valves – the evolution of the VHS-type – consist of a cylindrically shaped polymer body with flanged connection spigot to the silo, an exhaust outlet elbow for duct connection, an elastic membrane able to re-establish pressure balance instantaneously, a counterweight kit to keep the valve closed under normal conditions, and a weather protection cover.


Membrane Pressure Relief Valves

Function

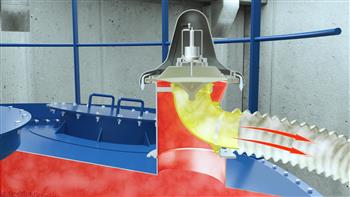

The counterweight-loaded VHS-C Pressure Relief Valve has one decisive advantage over WAM’s other pressure relief valve, the VCP. Due to the moment of inertia of the helical springs on the VCP-type pressure relief valve, pressure balance is re-established quickly but not instantaneously. The VHS-C, on the other hand, does the job in real time. Through an interplay of pressure on different surface areas on both sides of a membrane fitted inside the valve casing, perfect pressure balance is achieved. In the event of excess pressure this interaction enables air from inside the silo to flow back into the atmosphere, whereas in case of suction pressure the air penetrates from the atmosphere into the silo.


Features

  • Vertical carbon steel or 304 stainless steel spigot
  • Casing diameter: 273 mm (10 in)
  • Exhaust outlet spout for connection to centralised suction system
  • Mechanical set-up for inductive signalling sensor
  • Limited number of components
  • Counterweight system never in contact with dust
  • Membrane and conveying pipe of special geometry manufactured from innovative materials
  • SINT engineering polymer casing and weather protection cover
  • Special properties of membrane and elbow prevent clogging and formation of material crusts
  • PATENTED

Benefits

  • High safety level for people and environment thanks to conveyed flow and reduced emissions
  • Lower operating and maintenance costs thanks to self-cleaning elbow and limited number of components
  • Dust recovery from conveyed emissions possible
  • Lightweight
  • Self-cleaning conveying pipe
  • Better performance than spring-loaded version at a competitive price

Options

  • EN 1935/2004-compliance
  • Manhole
  • Inductive sensors
  • Bird net
  • Setting kit

Solutions

Multimedia

VHS-C - Pressure Relief Valve

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

VHS-C_0321_EN_EDIT.pdf
Latest edition: June 2021
English
Code: 203001752

Application Datasheets

DS_AnimalFeedMilling_VHS-C_1214_ENG.pdf
Latest edition: December 2014
English
Code:
DS_ConcreteProduction_VHS-C_0415_ENG.pdf
Latest edition: April 2015
English
Code:
DS_LimeDosing_VHS-C_0415_ENG.pdf
Latest edition: April 2015
English
Code:
DS_PaintandVarnish_VHS-C_0915_ENG.pdf
Latest edition: January 2015
English
Code:
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
