Tanker Loading Bellows ZN

Economic tanker loading of dry, non-dusty bulk solids

Introduction

Tanker Loading Bellows 1
Tanker Loading Bellows 2
Tanker Loading Bellows 3
ZN Loading Bellows are an economic yet efficient solution for dust-controlled loading of dry, non-dusty bulk solids into tankers.

Easy handling
Easy handling
Reduced dust emissions
Reduced dust emissions
Maintenance-friendly
Maintenance-friendly

Technical Specs

Description

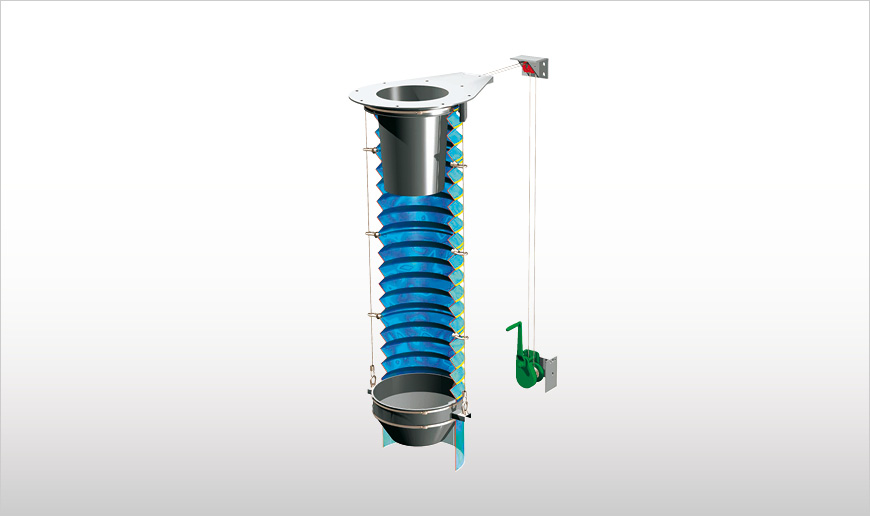

ZN Loading Bellows are used for efficient dust controlled loading of dry, non-dusty bulk solids into tankers. The spouts are provided with a single telescopic bellows chute.
At the lower end of the Loading Bellows a sealing cone is provided for connection to the tanker inlet.

Tanker Loading Bellows

Function

ZN Loading Bellows are suitable for discharging non-dusty bulk solids. A dust suction inlet or a material level control system inside the tanker are not provided with this model. Its compact overall dimensions make ZN the perfect choice for use where space is limited.


Features

  • Inlet diameter: 300 mm (12 in)
  • Maximum throughput rate: 250 m3/h (147 cfm)
  • Operating temperature: -40 ~ 150 °C (-40 ~ 300 °F)

Benefits

  • Manual winch with transmission
  • Upper connecting flange
  • Dust skirt

Options

  • ATEX-version available
  • Various chute and fabrication materials available according to material handled

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

ZN_EN_1013_EDIT.pdf
Latest edition: October 2013
English
Code: 063002420
ZN_0912_EDIT.pdf
Latest edition: September 2012
French, German
Code: TOR.505
ZN_IT_1113_EDIT.pdf
Latest edition: November 2013
Italian
Code: 203001034
