Open Truck Loading Bellows ZH

Efficient, dust controlled open truck loading of dry, dusty bulk solids

Introduction

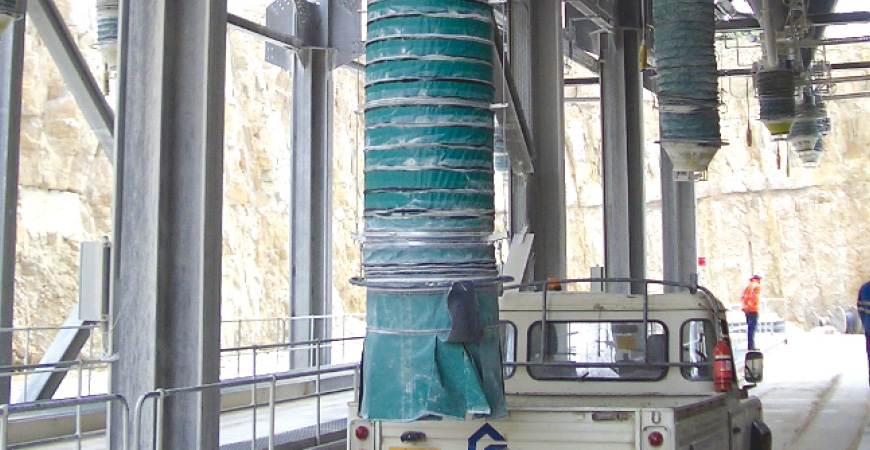

Open Truck Loading  Bellows 1

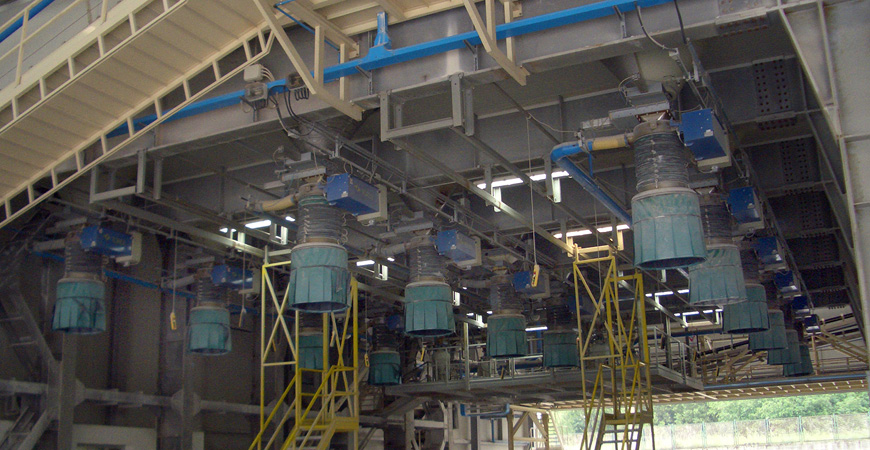

Open Truck Loading  Bellows 2
Open Truck Loading  Bellows 3
ZH Loading Bellows ensure efficient, dust controlled discharging of dry, dusty bulk solids into open lorries or trucks.

Solid flange for dust suction
Solid flange for dust suction

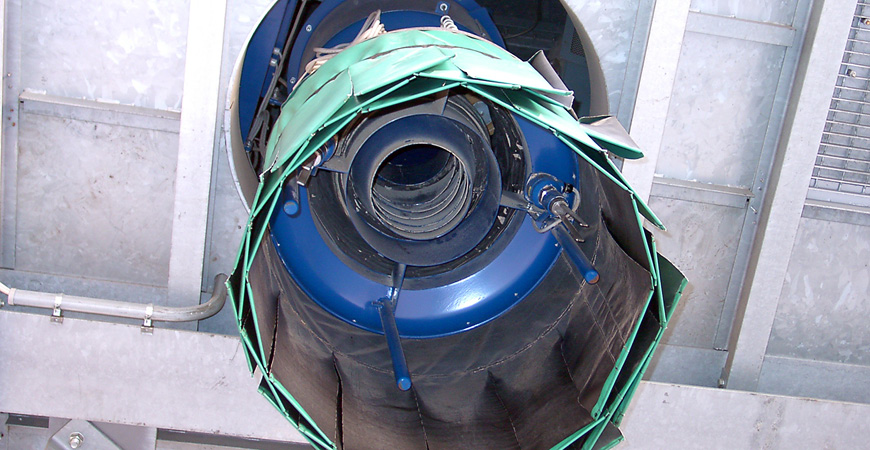

Weather-proof, durable, highly abrasion and temperature-resistant, flexible neoprene chute covered with Hypalon®
Weather-proof, durable, highly abrasion and temperature-resistant, flexible neoprene chute covered with Hypalon®
Two lifting cables outside the material flow raise and lower the loading bellows without cable wear due to material friction and obstruction to material flow
Two lifting cables outside the material flow raise and lower the loading bellows without cable wear due to material friction and obstruction to material flow

Technical Specs

Description

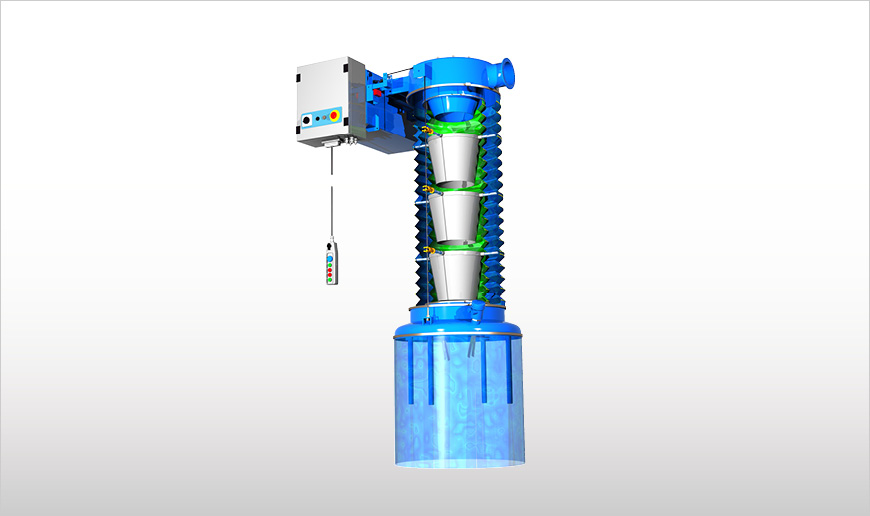

ZH Loading Bellows are used for efficient, dust controlled discharging of dry, dusty bulk solids into open lorries or trucks. The loading spouts are provided with inner tapered cones to contain the flow of material and an outer bellows to provide for dust removal.

Open Truck Loading  Bellows

Function

First the Loading Bellows is lowered from stand-by position towards the truck bed or stockpile. As soon as the bellows outlet touches the surface, a slack cable switch mounted outside the transmission box stops lowering of the bellows. A limit switch inside the transmission box stops both full extension and contraction of the bellows. Material loading starts by opening the silo outlet valve.
Once the bellows is fully contracted, the cable limit switch inside the transmission box stops operating.


Features

  • Inlet diameter: ZH = 300 mm (12 in); ZK =     400 mm (16 in)
  • Maximum throughput rate: ZH = 250 m3/h (147 cfm); ZK = 440 m3/h (260 cfm)
  • Operating temperature: -40 ~ 150 °C (-40 ~ 300 °F)

Benefits

  • Solid flange for dust suction
  • Weather-proof, durable, highly abrasion and temperature-resistant, flexible neoprene chute covered with Hypalon®
  • Two lifting cables outside the material flow raise and lower the loading bellows without cable wear due to material friction and obstruction to material flow

Options

  • ATEX-version available
  • Various chute and fabrication materials available according to material handled
  • Motor-driven or with handle winch
  • Control panel with remote control
  • Available with different types of level indicators
  • Outlet vibrator

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.
