Shafted Washer Compactors VWP

Introduction

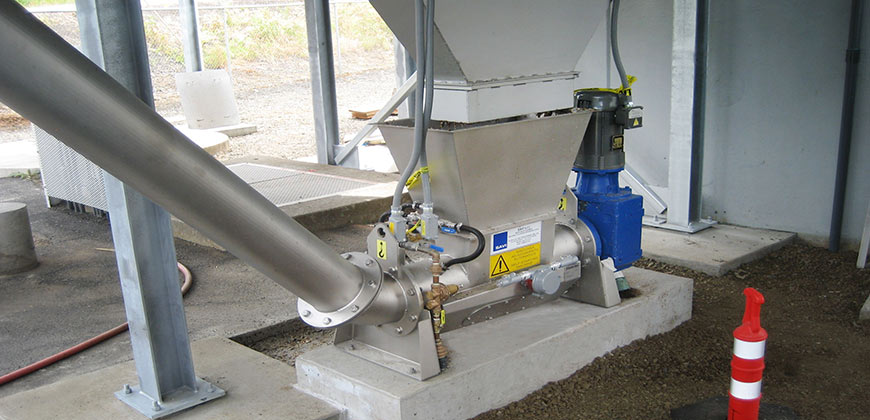

Shafted Washer Compactors 1

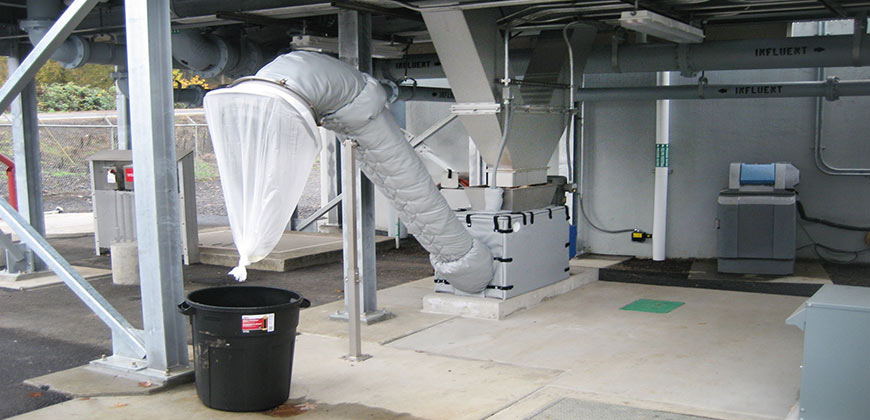

Shafted Washer Compactors 2

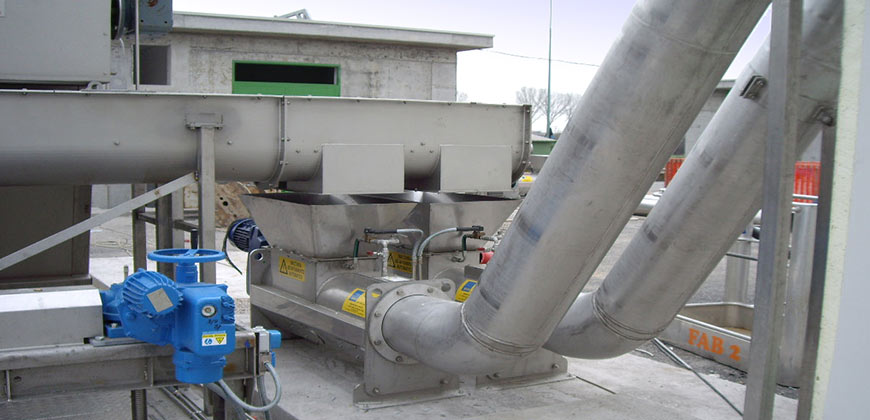

Shafted Washer Compactors 3

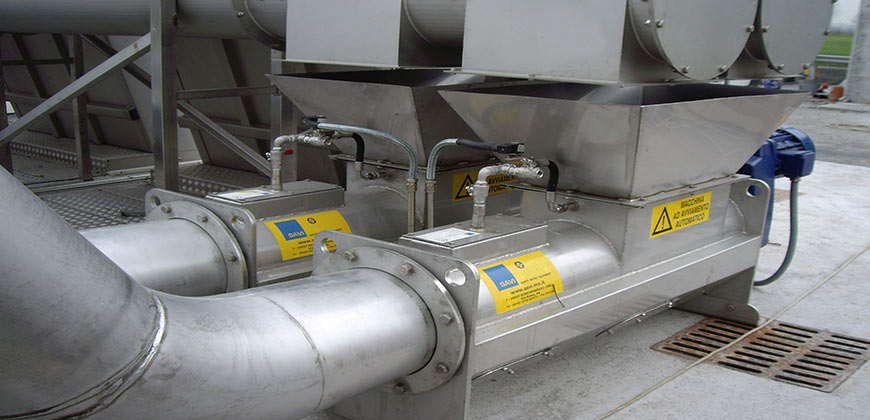

Shafted Washer Compactors 4
VWP Shafted Washer Compactors are used to compact screenings removing, at the same time, organic particles in both municipal and industrial waste water treatment plants.
Volume reduction of up to 65%
Volume reduction of up to 65%
Screenings washing system
Screenings washing system
Low maintenance costs
Low maintenance costs

Technical Specs

Description

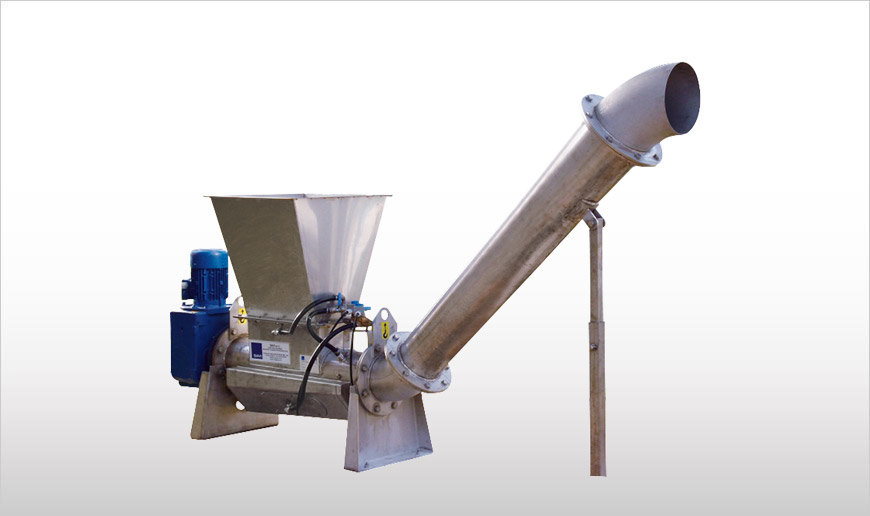

VWP Shafted Washer Compactors mainly consist of a thick steel shafted, directly driven spiral which rotates inside the cylindrical compacting zone into which the screenings to be compacted are conveyed.
Shafted Washer Compactors

Function

Screenings fall into the compactor hopper from which a rotating shafted spiral conveys solids to the compacting zone where they are dewatered and, at the same time, conveyed to the outlet. The compacting zone is equipped with spray nozzles for washing organic matter contained in the screenings. The liquid produced by washing and compacting is transferred back to the purification process through the screening channel.

Features

  • 3 sizes available
  • From 1.5 up to 6 m³/h of screenings
  • Washing system for removal of organic matter
  • Shafted spiral
  • Frame manufactured from 304 L / 316 L SS
  • Spiral manufactured from special ST 52 steel, optioanlly 304 L / 316 L SS

Benefits

  • Up to 65% volume reduction
  • Organic matter removal
  • Odour abatement

Options

  • Inlet hopper available in different sizes
  • Compacting pipe available in different lengths and incline angles
  • Material: 304 L / 316 L SS
  • Alternative voltage and frequency
  • Alternative degree of motor protection
  • Control panel

Accessories

  • Bagger

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

SAVECO_VWP_EN_0418_EDIT.pdf
Latest edition: April 2018
English
Code:
SAVECO_VWP_IT_0418_EDIT.pdf
Latest edition: April 2018
Italian
Code:
VWP_FR_0418.pdf
Latest edition: March 2019
French
Code: 203001381
VWP_DE_0418_EDIT.pdf
Latest edition: June 2020
German
Code: 203001418
SAVECO_VWP_RU_0418_EDIT.pdf
Latest edition: March 2019
Russian
Code: 203001611
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
