Overflow Spillway VSE

Introduction

Overflow Spillway  1

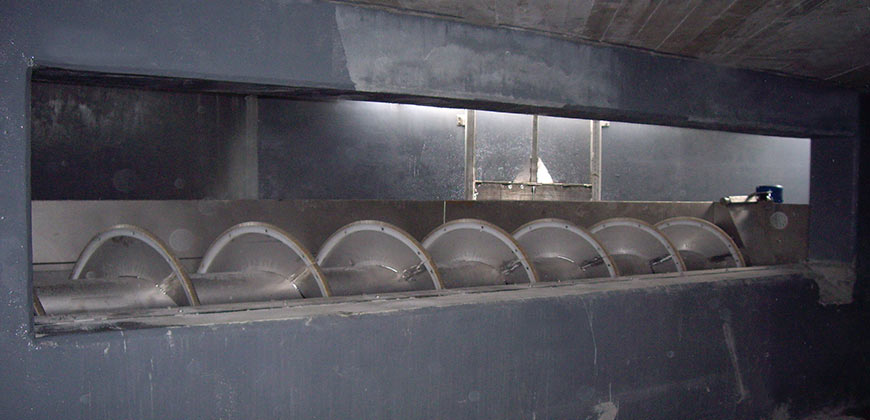

Overflow Spillway  2
Overflow Spillway  3
VSE Overflow Spillways are used to treat overflows. They consist of a semicircle filter installed on the edge of the spillway.
Compact design
Compact design
Overflow treatment
Overflow treatment
No scheduled maintenance required
No scheduled maintenance required

Technical Specs

Description

VSE Overflow Spillways consist of a horizontal semicircle perforated plate filter complete with a spiral, and a drive unit. Installed on the side edge of overflow channels, they are used to screen overflow waste water.
Overflow Spillway

Function

The screen operates when the water level is higher than the one set by the level sensor and stops automatically as the water level diminishes.
The overflowing water passes through the horizontal filter keeping solids inside. The filter is cleaned by means of a rotating spiral equipped with wear-proof polymer brushes. Screenings do not need to be removed from the screen as the spiral acts also as a conveyor (axial direction) taking solids to the outlet.

Features

  • 3 sizes available – 300 / 500 / 700
  • 3 opening sizes available – 6 / 7 / 8 mm perforated plate
  • Lengths from 1 to 12m
  • Frame, filter and spiral manufactured from 304 L / 316 L SS

Benefits

  • Overflow water screening
  • Automatic operation
  • Easy installation also in existing plants

Options

  • Installation on top of the overflow channel
  • Alternative voltage and frequency
  • Alternative degree of motor protection
  • Control panel

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

SAVECO_VSE_EN_1218_EDIT.pdf
Latest edition: December 2018
English
Code:
SAVECO_VSE_IT_1218_EDIT.pdf
Latest edition: December 2018
Italian
Code:
VSE_0315_EDIT.pdf
Latest edition: March 2015
English
Code:
