Fit-Frame Butterfly Valves VFP-VFPX

Optimum mass flow, no contamination, easy handling, EC 1935/2004-compliant

Introduction

Fit-Frame Butterfly Valves 1

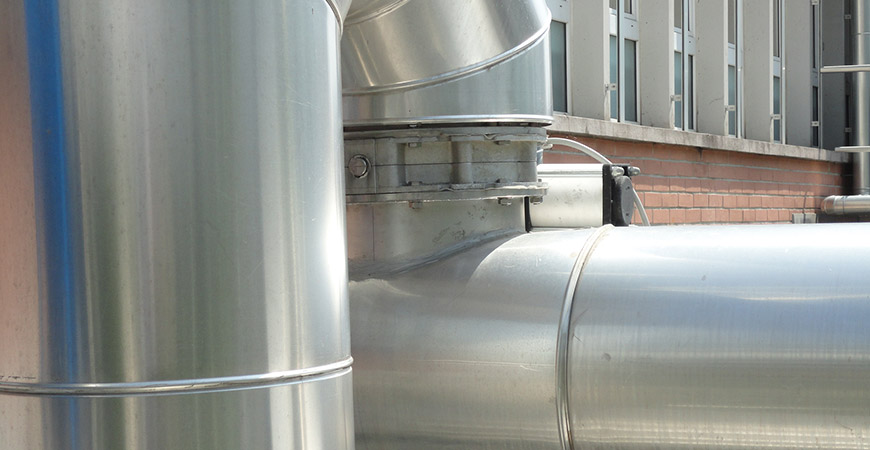

Fit-Frame Butterfly Valves 2

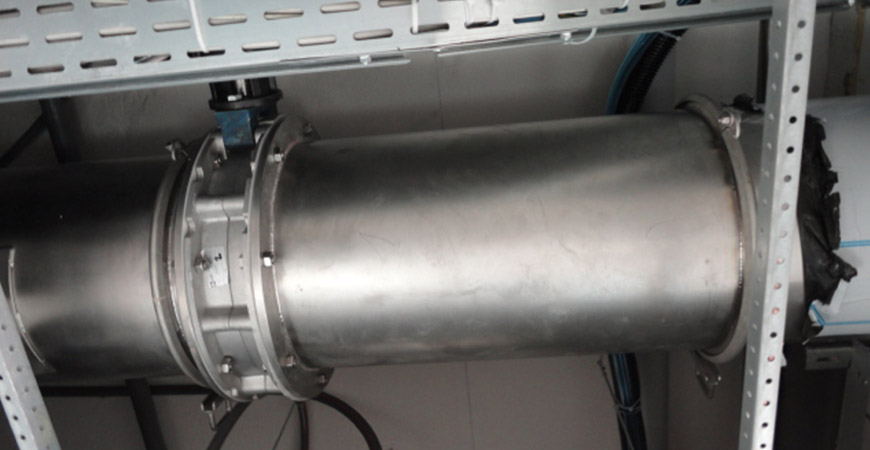

Fit-Frame Butterfly Valves 3
VFP/VFPX Butterfly Valves can be fitted beneath hoppers, bins, silos, screw or other type conveyors, or to intercept pneumatic conveying ducts. Due to their special design material residue between valve and the connected feeding device is drastically reduced. This line of valves is compliant with Regulation (EC) No. 1935/2004 on materials and articles intended to come into contact with food.
Minimum contamination due to
Minimum contamination due to "FIT-FRAME"
Increased flow rates
Increased flow rates
Compact design due to lower overall dimensions of all components
Compact design due to lower overall dimensions of all components

Technical Specs

Description

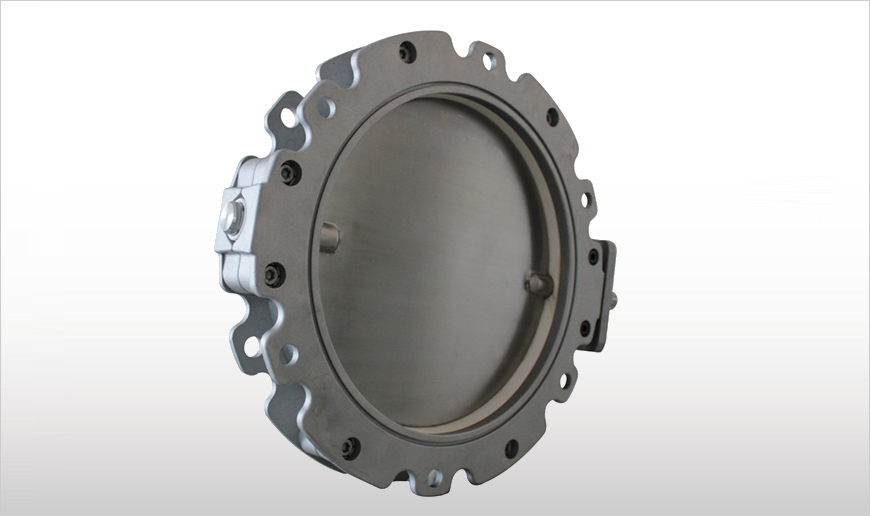

VFP Butterfly Valves consist of two high-pressure die-cast semi-bodies manufactured from aluminium alloy, a swivel disc in SINT engineering polymer, stainless steelor cast iron, and a pre-stressed elastomeric
seal.
For food applications a version with stainless steel disc and integral FDA-approved seal is available.
VFP Butterfly Valve can be used for any kind of powder or granular material stored in silos or containers.
Fit-Frame Butterfly Valves

Function

VFP Butterfly Valves are used in all types of bulk solids processing plants where interception of gravity-fed or pneumatically conveyed dry powders or granules is required. VFP Butterfly Valves can be fitted beneath hoppers, bins, silos, screw or other type conveyors, or for material interception in pneumatic conveying ducts. Due to their special design and to the engineering materials used, they represent a particularly economic yet most efficient solution in all product processing where contamination and material pollution represent a critical point.


Features

  • Food-grade components manufactured from FDA and EC 1935/2004-certified materials
  • V2FP with identical top and bottom flange
  • Pressure-proof up to 0.2 bar (2.9 PSI)
  • High-pressure die-cast semi-bodies manufactured from aluminium alloy
  • Disc in cast iron, SINT® or Polyacetal  engineering polymer, stainless steel
  • Seals for standard or food-grade application
  • Highly abrasion-resistant interchangeable discs

Benefits

  • Certified EC 1935/2004
  • Quick maintenance thanks to the small number of components
  • Lightweight and easy to handle thanks to minimized height dimensions
  • Easy to fit thanks PN and ANSI flange compatibility
  • Low residue and contamination thanks to the new inlet dimensions and sizes available
  • Ex-stock delivery

Options

  • ATEX zone 20 internal and zone 22 external certification
  • Stainless steel disc and integral seal version for food industry

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

VFP_0421_EN_EDIT.pdf
Latest edition: June 2021
English
Code: 203001748
VFP_CN_1013_EDIT-LOW.pdf
Latest edition: October 2013
Chinese
Code:
VFP_DE_0916_EDIT.pdf
Latest edition: September 2016
German
Code:
VFP_ES_0916_EDIT.pdf
Latest edition: May 2017
Spanish
Code:
VFP_IT_0916_EDIT.pdf
Latest edition: September 2016
Italian
Code:
