Polymer Spring-Loaded Pressure Relief Valves VCP-D

Thousands installed worldwide

Introduction

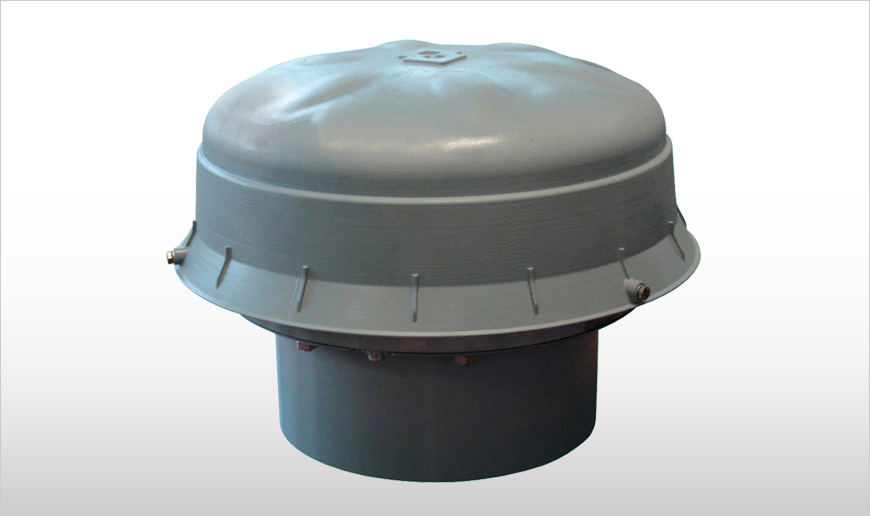

Polymer Spring-Loaded Pressure Relief Valves 1

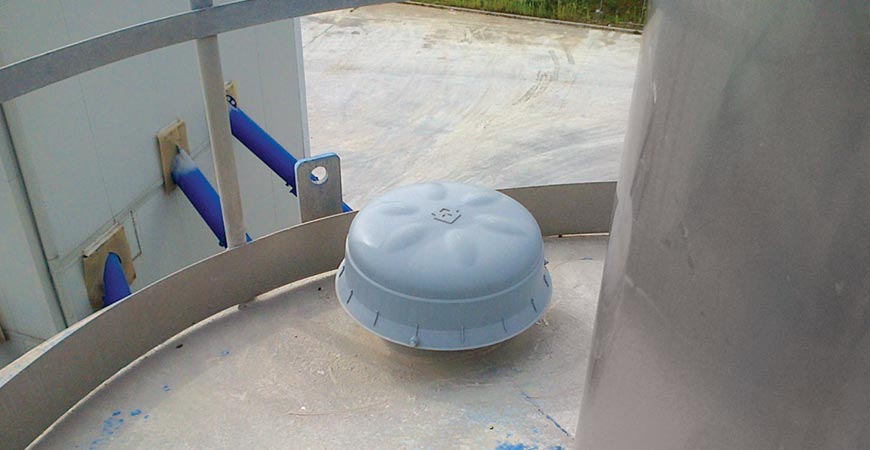

Polymer Spring-Loaded Pressure Relief Valves 2

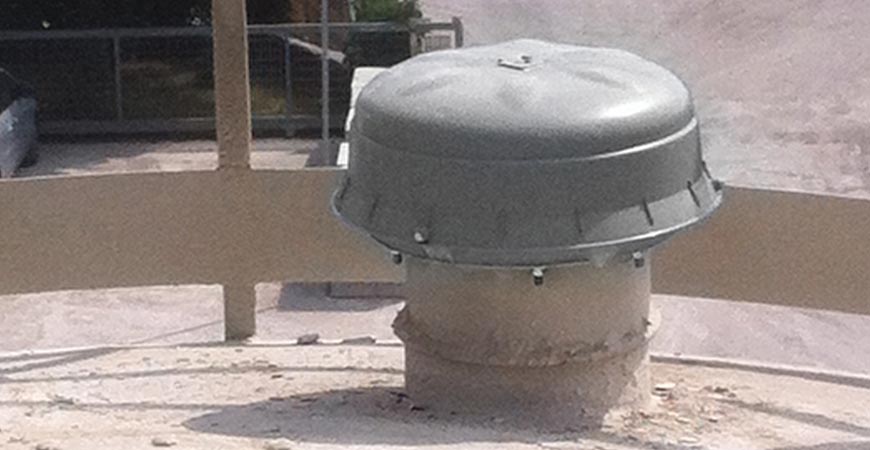

Polymer Spring-Loaded Pressure Relief Valves 3
VCP-D Pressure Relief Valves are the last resort when abnormal pressure conditions endanger the silo structure. This is why sudden excess or suction pressure inside the silo must be dealt with instantaneously. Even though ideally a Pressure Relief Valve should never have to go into action, it must be efficient and reliable if needed.
With thousands installed worldwide, VCP-D Pressure Relief Valves have given evidence of being totally reliable under most different conditions.
Comfortable handling thanks to lightweight design and compact overall dimensions
Comfortable handling thanks to lightweight design and compact overall dimensions
Easy to fit
Easy to fit
Quick maintenance
Quick maintenance

Technical Specs

Description

VCP-D Pressure Relief Valves consist of a cylindrical casing with a bottom flange to be connected with a spigot welded on the silo roof, a disc shape inner polymer lid for negative pressure operation held in position by a central spring rod, an outside steel ring for excess pressure kept in position by three spring rods, gaskets, and a weather protection cover.
Polymer Spring-Loaded Pressure Relief Valves

Function

Helical springs keep the valve lids closed when the pressure value remains within the preset limits. The three outside spring rods keep the external ring-shaped lid firmly closed as long as the force generated by the pressure inside the silo does not overcome the spring force. Once the pressure exceeds the pre-set value the lid is pushed up and pressure can escape. The smaller lid covers the central circular opening of the external lid from below. It is held in the middle by a single spring rod and is pressed onto the external lid by the normal air pressure inside the silo. In the event of suction pressure the spring is compressed and allows the lid to drop. The air entering the silo from outside ensures rapid pressure balance and pushes the central lid back up into "closed" position.

Features

  • Flow rate: up to 6,000 m3/h (3,531 cfm)
  • Painted carbon steel
  • Polymer weather protection cover
  • Mechanical set-up for inductive signalling sensor
  • Preset for maximum negative pressure of -0.005 bar (-0.07 psi) and maximum excess pressure of 0.05 bar (0.72 psi)

Benefits

  • Lightweight design and reduced overall dimensions for extremely comfortable handling
  • Easy to fit
  • Quick maintenance

Options

  • Optionally different  settings available
  • Inspection hatch
  • Inductive sensors
  • Bird net

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

VCP-D_0321_EN_EDIT.pdf
Latest edition: June 2021
English
Code: 203001745
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
