Chain Conveyors TCG

Expertise in mechanical conveying since the beginning of the 20th century

Introduction

Chain Conveyors 1
Chain Conveyors 2
Chain Conveyors 3

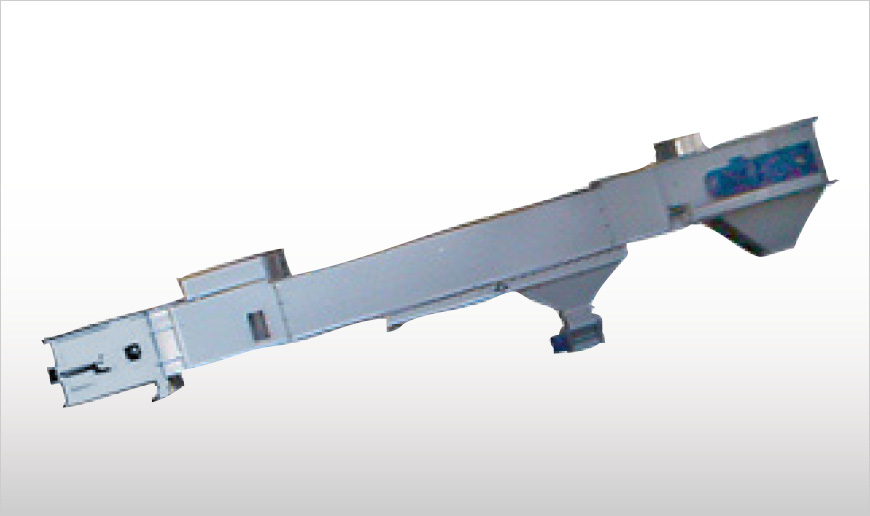

Specialised for conveying cereals, flour or similar materials, TCG Chain Conveyors enable material discharge in different points through intermediate outlet spouts, equipped with electrically operated slide valves especially designed for this purpose.

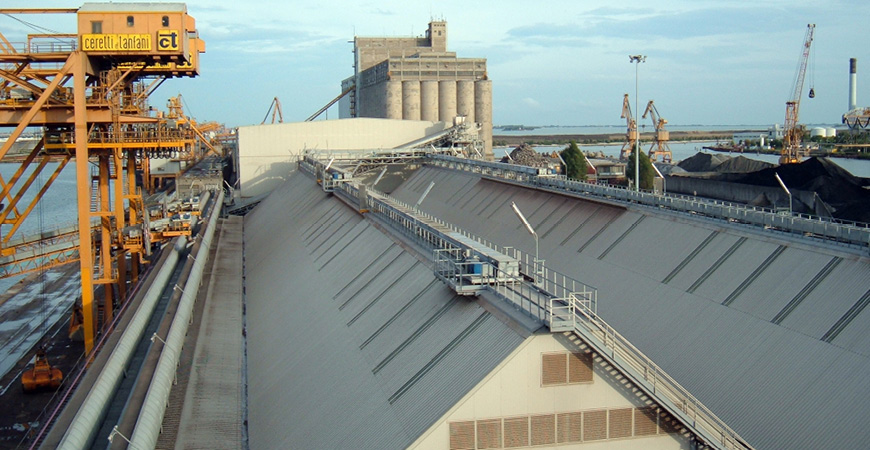

Apart from various industrial processes, TCG Chain Conveyors are widely used in storage plants for cereals and similar products.
Cost-effective conveying
Cost-effective conveying
Reliable and durable
Reliable and durable
Atex II 3D T4-compliant
Atex II 3D T4-compliant

Technical Specs

Description

Chain or Drag Conveyors are designed for conveying dry solids such as free flowing powders, granules, pellets and flakes.
The hot-galvanised, flanged casing consists of a tail and a head section, as well as a number of modular intermediate sections. The tail and the head section contain drag and transmission rollers. The design facilitates assembly and maintenance.
The drive unit is coupled on the drag roller by means of a direct geared motor or chain transmission.
Depending on the characteristics of the material handled and on the throughput rate required, the conveyor chain may be manufactured from blank and bent links or forged with pressed links.
The chain guide is made of Polyzene® or manganese steel depending on the application.

Chain Conveyors

Function

TCG Chain Conveyors are specialised for conveying cereals, flour or similar materials.

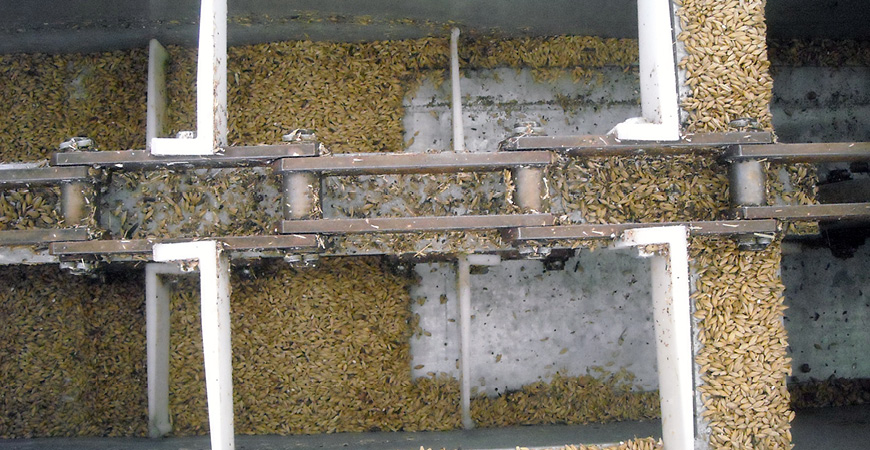

The product is dragged and conveyed by rectangular shaped flights along the bottom of the casing. The flights are fixed beneath a guided chain.
The conveyor enables material discharge in different points through intermediate outlet spouts, equipped with electrically operated slide valves especially designed for this purpose.

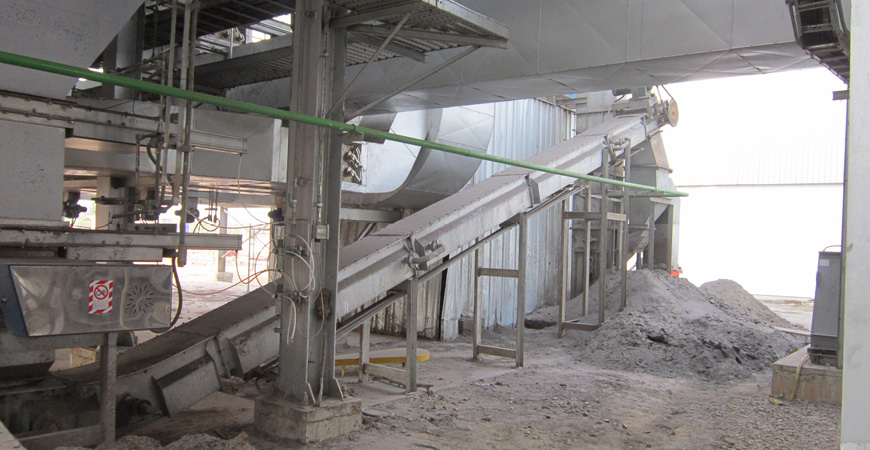

Apart from various industrial processes, TCG Chain Conveyors are widely used in storage plants for cereals and similar products. Applications include horizontal conveying with one or more discharge points, inclined conveying with one or more discharge points, material extraction from pits or hoppers, and material extraction and conveying with variation of angle of inclination.


Features

  • Throughput up to 1,000 m3/h
  • Conveying length up to 100 m
  • Surface treatment: hot dip galvanized
  • Direct or chain transmission drive
  • Inlet and outlet hoppers
  • Casing: single, double bottom, or side inlet for extraction from pits
  • Chain with pressed or forged type links
  • Chain guide in Polyzene® or manganese steel
  • Cups for collection of residual material
  • Overflow hatches with safety device
  • Rotation sensors

Benefits

  • Solid, robust design
  • Easy installation thanks to modular components
  • Suitable for explosive environments
  • Reliable and durable
  • Minimum maintenance required

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

TCG_0912_EDIT.pdf
Latest edition: September 2012
English, French, German, Italian
Code: RON 100.10
TCG_PL_0912_EDIT.pdf
Latest edition: May 2017
English, French, German, Polish
Code:
TCG_RU_0912_EDIT.pdf
Latest edition: May 2018
French, German, Italian, Russian
Code: 203001592

Application Datasheets

DS_FlourMilling_TCG_0115_ENG.pdf
Latest edition: January 2015
English
Code:
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
