Single Shaft Screw Feeders SU

High efficiency feeding

Introduction

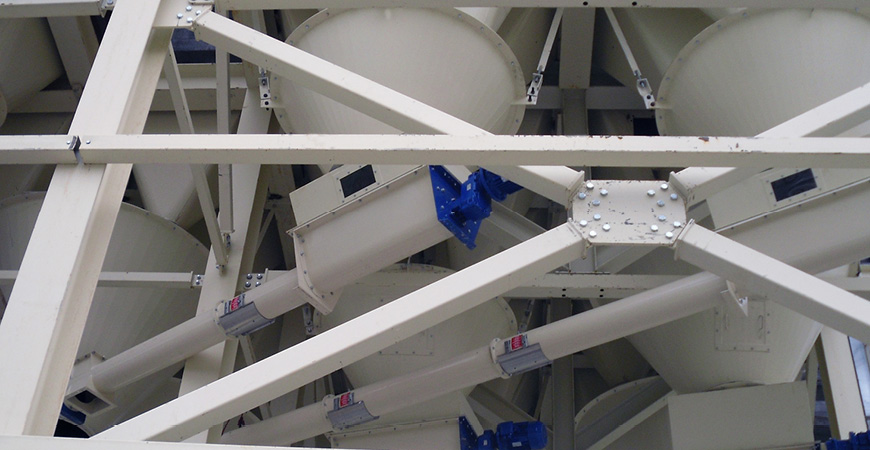

Single Shaft Screw Feeders 1
Single Shaft Screw Feeders 2
Single Shaft Screw Feeders 3
Some powders or granular materials are so poorly flowing that they cannot be stored in silos with a circular outlet cone requiring storage in silos with a steeper cone and an oblong outlet opening. SU-type Screw Feeders match the shape of the silo outlet. The trough section is coupled to a tubular section for efficient material feeding towards further processing.

Constant feed rates
Constant feed rates
Prevents bridging, rat-holing or segregation improving material flow
Prevents bridging, rat-holing or segregation improving material flow
Modular design enabling easy access and individual custom-design features
Modular design enabling easy access and individual custom-design features

Technical Specs

Description

According to the cross section of the silo outlet, SU-type Single Shaft Screw Feeders are available with standard U-shaped or with flared V-section trough. In a light-duty version, SU-Feeders are used for flour and materials with similar bulk density and properties. For animal feed and similar products a heavy-duty version is available.
SU Screw Feeders are available with ATEX, Zone 22 certification.

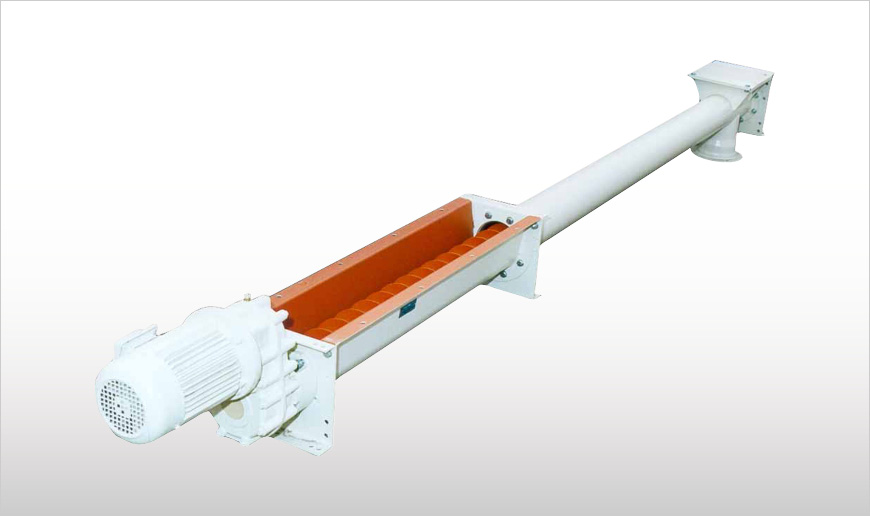

Single Shaft Screw Feeders

Function

Some powders or granular materials are so poorly flowing that they cannot be stored in silos with a circular outlet cone. The silo simply would not empty. Such materials (e.g. flour) require storage in silos with a steeper cone and an oblong outlet opening. With their inlet trough section SU-type Screw Feeders match the shape of the silo outlet. The trough section is coupled to a tubular section for efficient material feeding towards further processing.

Features

  • Light or medium-heavy-duty carbon steel trough in modular flanged sections
  • Light or medium-heavy-duty carbon steel helicoid flighting welded on centre pipe
  • Open trough section with drilled WAM standard trough flange; round outlet with WAM standard drilled flange
  • Powder-coated
  • Robust cast iron body flanged end bearing assemblies with externally positioned bearings and manually adjustable packing gland seals
  • Splined or bolted shaft couplings
  • Drive unit mounted at inlet or outlet end
  • Direct drives in a compact version, with coupling transmission, or with chain or belt transmission
  • Maintenance-free intermediate cast hanger bearings with self-lubricating slide bushes

Benefits

  • Constant feed rates
  • Sturdy design
  • Prevents bridging, rat-holing or segregation improving material flow
  • Modular design enabling easy access and individual custom-design features

Options

  • Food-grade finishing and painting
  • Air-purged shaft seals
  • Square, rectangular or shoe-type outlet spouts with drilled WAM standard flanges
  • Overflow hatches
  • Slide valves

SU SCREW FEEDERS ARE AVAILABLE WITH ATEX, ZONE 22 CERTIFICATION.

Multimedia

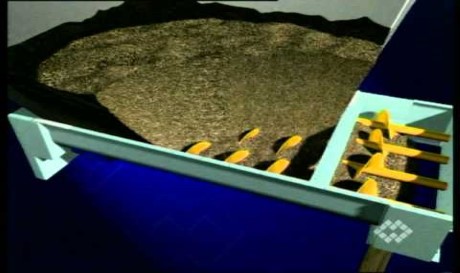

SU BU

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

SU_0912_EDIT.pdf
Latest edition: September 2012
English, French, German, Italian
Code: WAM.01505

Application Datasheets

DS_AnimalFeedMilling_SU_1214_ENG.pdf
Latest edition: December 2014
English
Code:
DS_FlourMilling_SU_0115_ENG.pdf
Latest edition: January 2015
English
Code:
DS_PaintandVarnish_SU_0915_ENG.pdf
Latest edition: January 2015
English
Code:
