WAM Shanghai

Lump Breaking Feeder Valves LBC

No clogging even with hardened materials

Introduction

Lump Breaking Feeder Valves 1
The Lump Breaking Feeder Valve enables safe and smooth segregation of bulk materials that tend to pack and form lumps during production and/or storage. Its design favours gentle crushing even with hardened material under a medium-high material column.

Improved material flow
Improved material flow
Makes material processing more efficient
Makes material processing more efficient
Increased energy efficiency
Increased energy efficiency

Technical Specs

Description

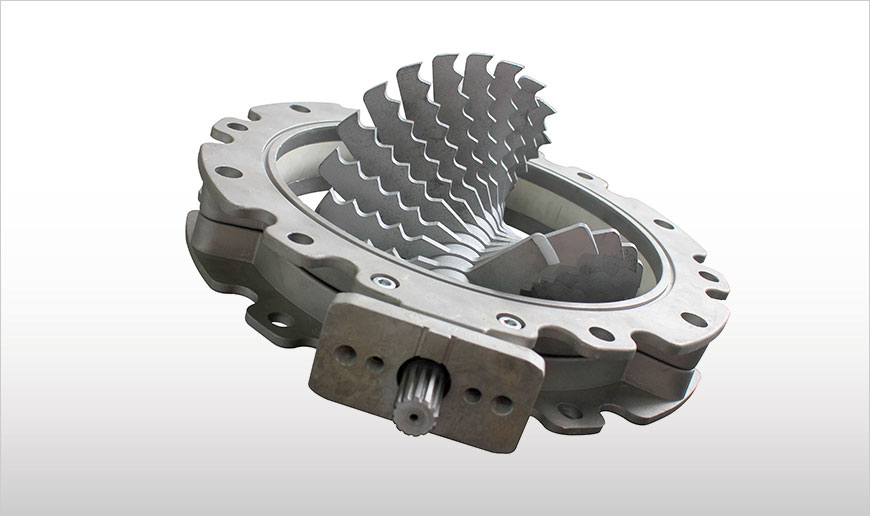

The device consists of a solid cylindrical body with inlet and outlet flange, an integrated crushing tool driven by a side-located electric motor and a rigid grid. To adjust to the required particle size both blades and grid are easily removable to be adapted according to the desired material characteristics
Lump Breaking Feeder Valves

Function

The Lump Breaking Feeder Valve is fed with agglomerated solids which, after being crushed are discharged through the outlet towards further processing. The LBC is the ideal solution to break up snow-ball-like materials. It is particularly suitable for hygroscopic materials and those that are compacted under pressure, such as sugar, salt, silicates, chemicals, and food products in general. The LBC Lump Breaking Feeder Valve can be fitted in loading and/or discharging pipes, for emptying or filling drums, bins, or screw conveyors.

Features

  • Cylindrical connection
  • Single shaft configuration
  • Replaceable blades
  • Easy to disassemble and clean

Benefits

  • Compact design for easy maintenance
  • Segregation without particle degradation
  • Enhanced material quality
  • Improved material flow
  • Increased energy efficiency
  • Cost-effective operation

Options

  • Food-grade version
  • Connecting spigot

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

LBC_0321_EN_EDIT.pdf
Latest edition: June 2021
English
Code: 203001739
LBC_0618_ES_EDIT.pdf
Latest edition: March 2019
Spanish
Code: 203001706
LBC_0618_RU_EDIT.pdf
Latest edition: March 2019
Russian
Code: 203001707
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
