Sub-vertical Mechanical Perforated Screens GVS

Introduction

Sub-vertical Mechanical Perforated Screens 1
Sub-vertical Mechanical Perforated Screens 2
Sub-vertical Mechanical Perforated Screens 3

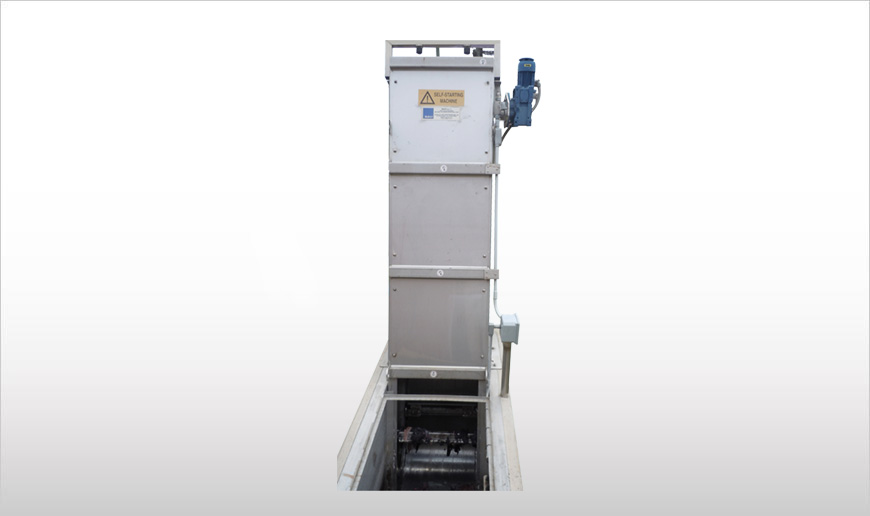

GVS Sub-vertical Mechanical Perforated Screens are used for fine screening in both municipal and industrial waste water plants.
Robust design
Robust design

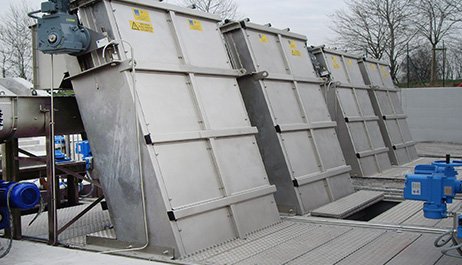

Installation in very deep channels
Installation in very deep channels
Low maintenance costs
Low maintenance costs

Technical Specs

Description

GVS Sub-vertical Mechanical Screens consist of a robust steel frame and a perforated plate filter varying according to the screening efficiency required.
GVS screens, which are equipped with brushes and wiper blades, are suitable for fine screening of sewage in both municipal and industrial plants, as well as, in particular, for process water of industrial processing plants.
Sub-vertical Mechanical Perforated Screens

Function

Waste water flows into the upstream end of the unit where screenings are captured on a perforated plate filter.
Chain-driven brushes and wiper blades clean the perforated plate filter conveying at the same time solids to the discharge point.
Material is removed from the rakes by a wiper and discharged into a dumpster, conveyor or compactor.

Features

  • 3mm ~ 6mm perforation
  • 4 or more cleaning blades and wipers depending on screen height
  • Channel width: 400 ~ 2,000 mm
  • 75-degree incline angle

Benefits

  • Wipers, blades and brushes bolted to the rake mechanism
  • Easy replacement design
  • Recessed guide channels for drive chains
  • Lower chain guide with no moving parts
  • No lower sprocket, no bearings
  • Reduced service requirements (no need to remove screen from channel)

Options

  • Alternative screen types and sizes
  • Material: hot dip galvanised steel; 304 L / 316 L SS
  • Incline angle other than 75 degrees up to 90 degrees with goose neck
  • Alternative voltage and frequency
  • Alternative degree of motor protection
  • Control panel

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

SAVECO_GVS_EN_0418_EDIT.pdf
Latest edition: April 2018
English
Code:
SAVECO_GVS_IT_0418_EDIT.pdf
Latest edition: April 2018
Italian
Code:
GVS_FR_0418.pdf
Latest edition: March 2019
French
Code: 203001367
GVS_DE_0418_EDIT.pdf
Latest edition: June 2020
German
Code: 203001404
SAVECO_GVS_RU_0418_EDIT.pdf
Latest edition: March 2019
Russian
Code: 203001556
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
