Screenings Compactors CHP

Introduction

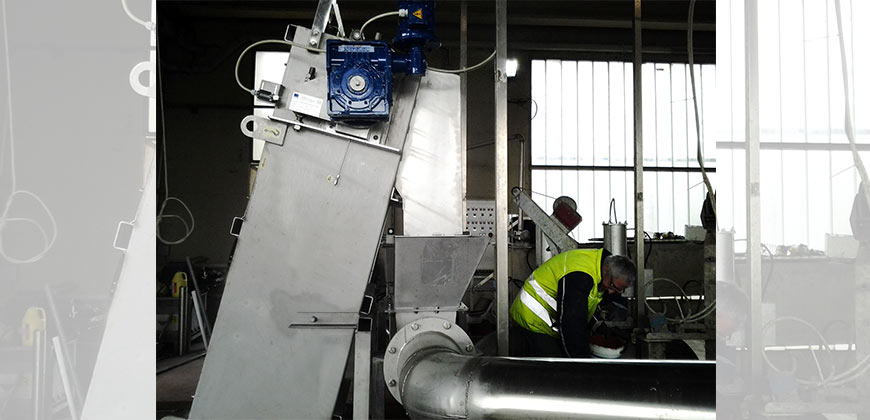

Screenings Compactors 1

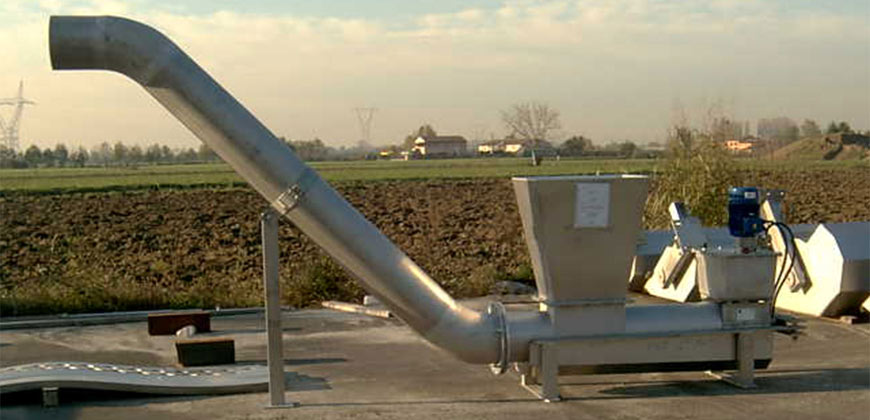

Screenings Compactors 2

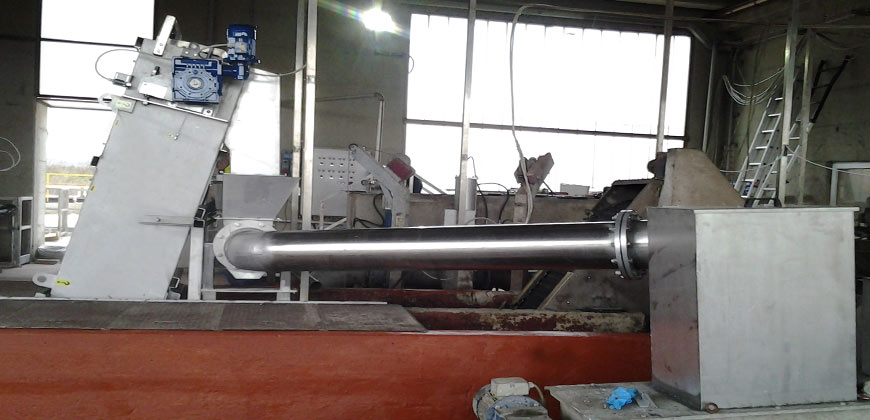

Screenings Compactors 3
CHP Compactors are used to compact screenings by means of a hydraulic ram in both municipal and industrial waste water treatment applications.
Reduction of volume up to 60%
Reduction of volume up to 60%
Small footprint
Small footprint
Low maintenance costs
Low maintenance costs

Technical Specs

Description

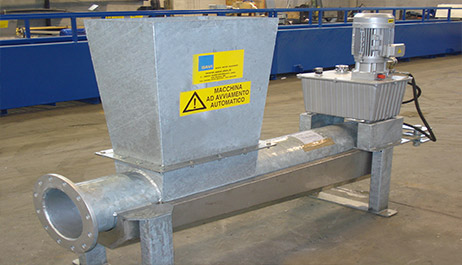

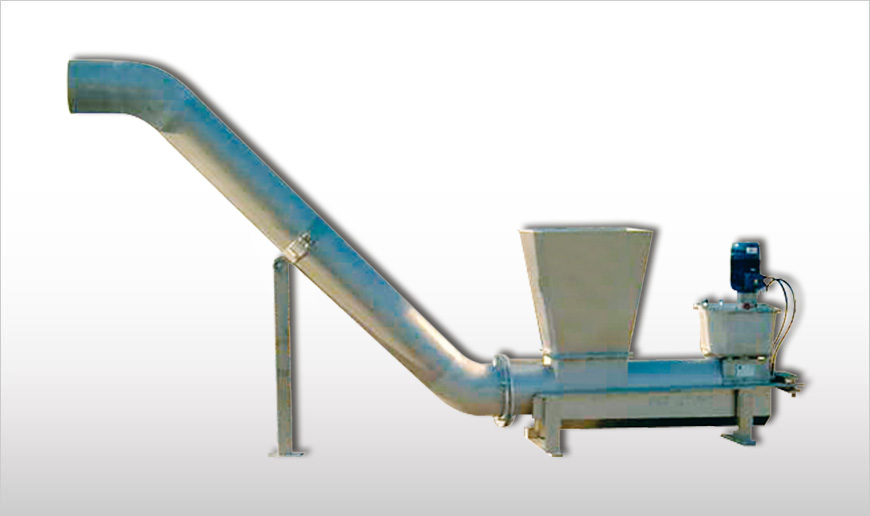

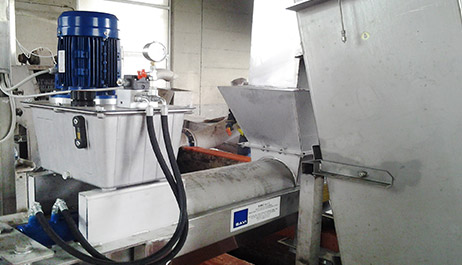

The CHP Compactor consists of a compaction zone equipped with a hydraulic ram, a hydraulic gear case, and a compacting pipe.
Screenings Compactors

Function

Screenings fall into the compactor hopper. The hydraulic ram dewaters and pushes screenings into the compacting pipe where they are further compressed and conveyed to the outlet. The liquid is drained through the lower part of the compactor.

Features

  • 3 sizes available
  • Screenings throughput from 1.5 up to 3.5 m³/h
  • Manufactured from carbon steel hot dip galvanized / 304 L / 316 L SS

Benefits

  • Volume reduction of up to 60%
  • Low cost
  • Small footprint

Options

  • Inlet hopper available in different sizes
  • Compacting pipe available in different lengths and incline angle
  • Material: 304 L / 316 L SS
  • Alternative voltage and frequency
  • Alternative degree of motor protection
  • Control panel

Multimedia

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

CHP_EN_0222_EDIT.pdf
Latest edition: February 2022
English
Code:
CHP_IT_0222_EDIT.pdf
Latest edition: February 2022
Italian
Code:
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
