Tapered Twin Shaft Screw Feeders BU

Minimised material residue

Introduction

Tapered Twin Shaft Screw Feeders 1
BU Twin Shaft Screw Feeders are an option for users who require particularly efficient discharging/feeding from bins or hoppers. They are designed for handling of non homogeneous materials (wood chippings, paper, etc.), materials from the flour milling industry (bran, flour, etc.), and bridging materials (e.g. sawdust, soy, etc.).

Avoids bridging
Avoids bridging
Avoids segregation
Avoids segregation
Provides constant feeding even with difficult materials
Provides constant feeding even with difficult materials

Technical Specs

Description

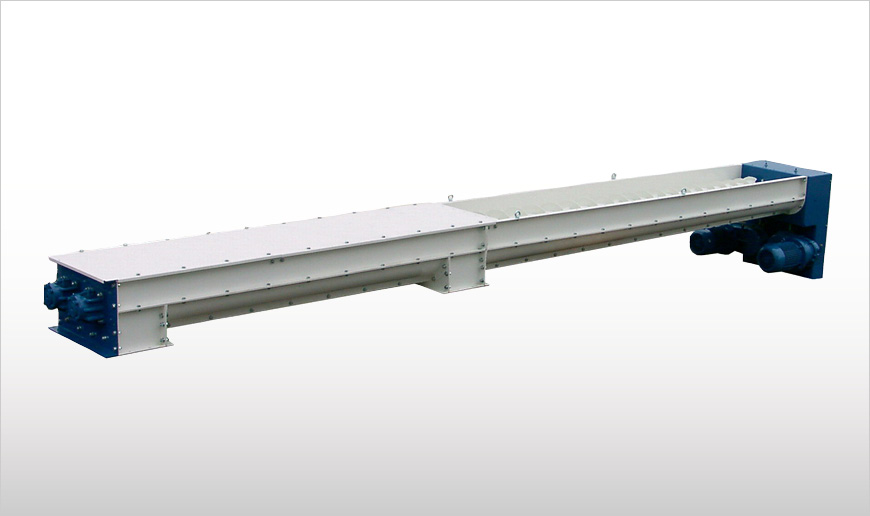

BU Twin Shaft Screw Feeders are equipped with a tapered inlet trough following the shape of the tapered inlet sections of the two screws, enclosing them almost completely from below at minimum clearance.
BU Screw Feeders are manufactured from carbon steel. The upper trough flange is fitted to match the outlet of the bin or hopper.

Tapered Twin Shaft Screw Feeders

Function

BU Twin Shaft Screw Feeders are an option for users who require particularly efficient discharging/feeding from bins or hoppers. BU is designed for handling of non homogeneous materials (wood chippings, paper, etc.), materials from the flour milling industry (bran, flour, etc.), and bridging materials (e.g. sawdust, soy, etc.).
BU Screw Feeders are available with ATEX, Zone 22 certification.


Features

  • Powder-coated
  • Tapered square pitch screws and trough manufactured from carbon steel
  • WAM standard inlet and outlet
  • Maintenance-free flanged cast iron end bearing assemblies with external bearings and manually adjustable packed gland seal
  • Maintenance-free intermediate hanger bearings with self-lubricating slide bushes
  • Fixed or variable speed gear motors with chain transmission mounted opposite drive end
  • Robust design
BU SCREW FEEDERS ARE AVAILABLE WITH ATEX, ZONE 22 CERTIFICATION.


Benefits

  • Modular design enabling easy access and individual custom-design features
  • Promotes mass flow
  • Gives wide feeding surface
  • Avoids bridging
  • Avoids segregation
  • Provides constant feeding even with difficult materials
  • Reliable and constant feed rates
  • High degree of self-cleaning of the trough

Multimedia

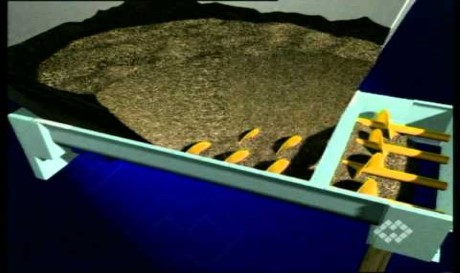

SU BU

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

BU_0912_EDIT.pdf
Latest edition: September 2002
English, French, German, Italian
Code: 063001414

Application Datasheets

DS_AnimalFeedMilling_BU_1214_ENG.pdf
Latest edition: December 2014
English
Code:
DS_FlourMilling_BU_0115_ENG.pdf
Latest edition: January 2015
English
Code:
