BINSWEEP Rotary Bin Dischargers

Comfortable and clean

Introduction

Rotary Bin Dischargers 1
BINSWEEP solves space problems where bulk solids are emptied from bags and transferred to some downstream processing equipment. While bags can be ripped and tipped in a comfortable work position, BINSWEEP ensures accurate, minimum residue discharging of bulk solids.

Comfortable bag emptying
Comfortable bag emptying
Discharging of bag content at ground level
Discharging of bag content at ground level
Minimum material residue
Minimum material residue

Technical Specs

Description

BINSWEEP is a device by which powders or granular materials are discharged from small size bins or hoppers provided there is low headload. Flanged on the outlet of the bin or hopper, BINSWEEP has a bottom disc equipped with two rotating arms fixed at its centre. Rubber scrapers are fitted on the lower end of the arms that move the material towards an outlet in the bottom plate. A gear motor that applies motion to the rotary arms is mounted outside in the bottom centre of the disc.
Rotary Bin Dischargers

Function

The BINSWEEP Rotary Discharger is an efficient discharging device for a variety of powders and granular materials. It is applicable to small bins or hoppers. Its low height reduces the overall dimensions of the system layout. Silent operation is guaranteed by rubber scrapers.
BINSWEEP is frequently used for recovery of dust from medium-size dust collectors.

Features

  • Body material: carbon steel, 304 L / 316 L stainless steel
  • Scraper material: EPDM or food-grade NBR
  • Low operating noise level
  • Continuous discharging

Benefits

  • Minimum space required
  • Low maintenance costs due to equipment components highly resistant to wear
  • Minimum material residue

Multimedia

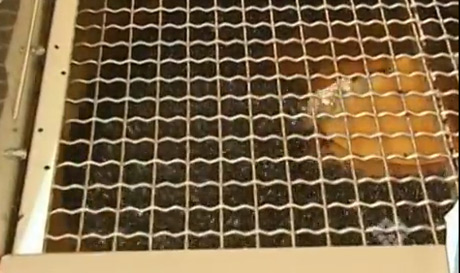

BINSWEEP Product Video

Download

Here below you will find all documents regarding this product. Click "Other Languages" for translated versions.

Brochures

BINSWEEP_0522_EN_EDIT.pdf
Latest edition: May 2022
English
Code: 203001803

Application Datasheets

DS_AnimalFeedMilling_BINSWEEP_1214_ENG.pdf
Latest edition: December 2014
English
Code:
DS_FlourMilling_BINSWEEP_0115_ENG.pdf
Latest edition: January 2015
English
Code:
DS_PlasticsProcessing_BINSWEEP_1214_ENG.pdf
Latest edition: December 2014
English
Code:
To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
