Volume reduction of solids of up to 40%

No civil works required

Special long-life screw brushes

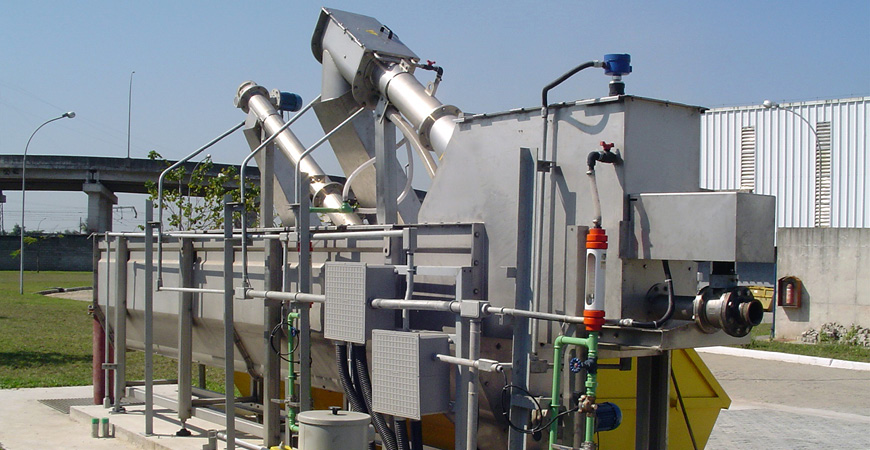

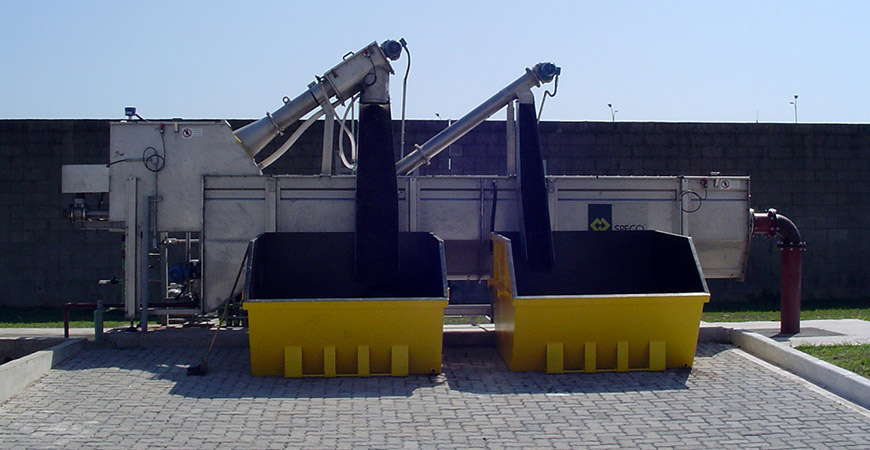

The WASTEMASTER TSB 2/3 carries out up to three different processes: de-watering and compacting of screened solid waste, separation of sand and removal of floating, greasy matter.

Function

Sewage from septic tanks / cesspools / interceptors or industrial plants collected by special purge tankers has to be pre-treated before being introduced into any kind of purification system. The process consists of the removal of solids, sand/grit and greasy matter which are all present in the sewage in order to avoid overloading of the treatment plant.

Features

Flow rates of up to 30 litres per second (63.5 cfm)
Inlet screen mesh: 5, 6, 7 mm
Sand separation with TSB-2/3: 90% particle size ≥ 200 μm
Grease removal with TSB-3
Up to 35% solids volume reduction
Modular design

Benefits

No jamming or locking even with fibrous products thanks to shaftless spirals
Volume reduction of solids of up to 40%
Absence of internal bearings
Low r.p.m.
Possible discharge into plastic bags
Special long-life screw brushes
Compact design
Perfect for over-ground installation especially where space is limited; no civil works required
Low investment and maintenance costs

Options

Alternative voltage and frequency
Alternative degree of motor protection
Control panel
Drive guard
Screen type
Assembly
Outlet side
Perrot valve
Chutes
Fixed internal pipe
Packaging

Accessories

Bag clamping system
Endless tube for screenings
Endless tube for sand
