Quick fitting thanks to WAM and CEMA flange compatibility

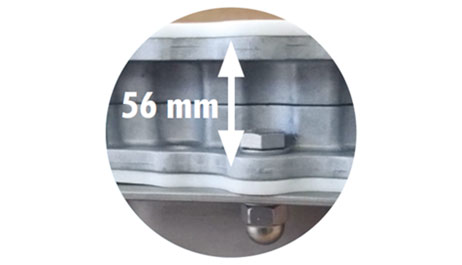

Minimised residue and contamination thanks to low profile design

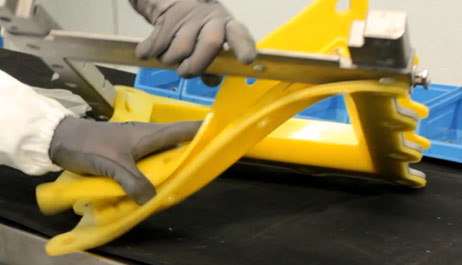

Highly abrasion-resistant due to replaceable SINT seal

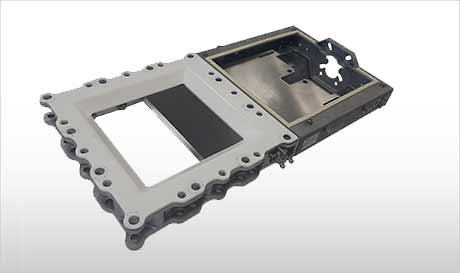

Low Profile VIG Slide Valves consist of two high pressure die-cast semi-bodies manufactured from aluminium alloy, a sliding blade in carbon or stainless steel, a carbon or stainless steel frame and a pre-stressed elastomeric seal manufactured from WAM’s unique SINT engineering polymer composite. The use of SINT engineering polymer composites considerably increases resistance to abrasion as compared to traditional valves. The valves are equipped with live-loaded seals which ensure extended durability and wear resistance, providing excellent sealing across the entire valve surface. Additional flange gaskets are not required. Low Profile VIG Slide Valves are available in a variety of configurations: the VIGQ version comes with a square inlet; the VIGC-type has a circular open cross section.
For the food industry a version with stainless steel blade and frame, as well as food-grade seal is available.
The VIG is a gravity Slide Valve for all kinds of powdery or granular materials stored in silos or bins.

Function

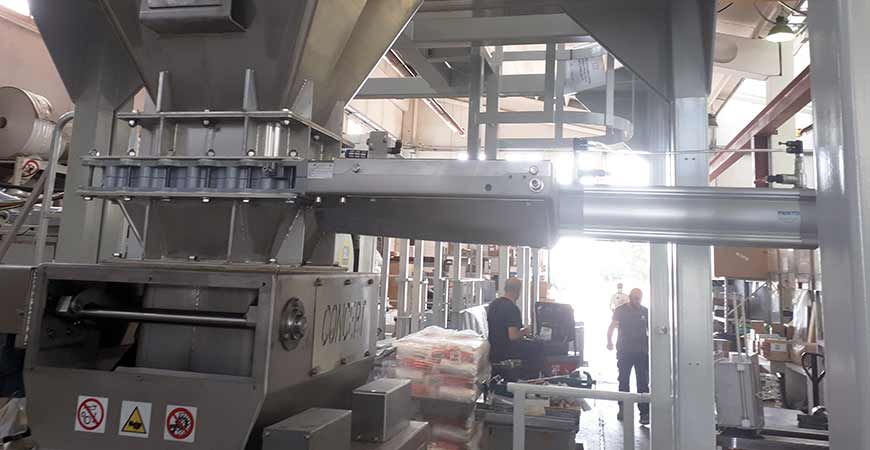

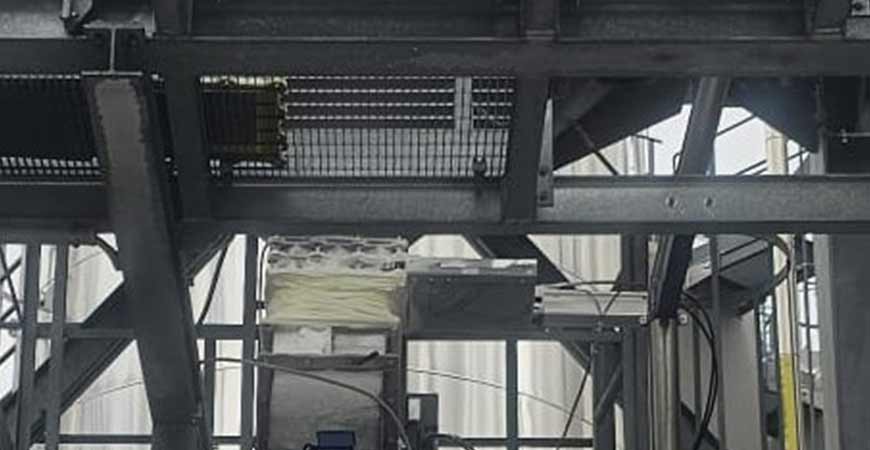

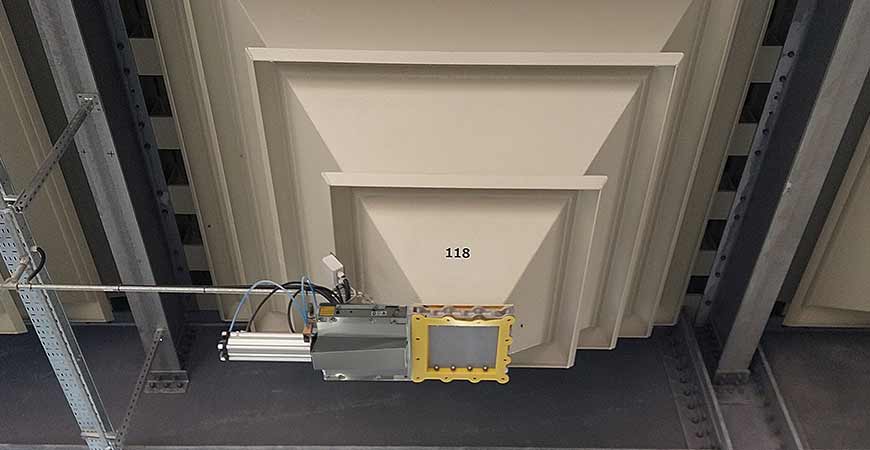

Low Profile VIG Slides Valves are used where flow of a dry powder or granular material caused by gravity or conveying has to be intercepted. Low Profile VIG Slide Valves may be fitted beneath hopper, bin or silo outlets, on inlet and outlet spouts of mechanical conveyors, as well as above the inlet of telescopic loading spouts.
The special geometry of Low Profile VIG Slide Valves and the various options in blade design enable their application in virtually all industries including food processing.
Due to their special design and to the engineering materials used, they represent a particularly economic yet most efficient solution in all product processing applications where contamination and material pollution are an issue.

Features

PATENTED dust-proof, friction-free design
Compact: small number of components, minimum overall height
Compatible with WAM and CEMA flanges
Safe sealing with no additional measures due to the all-round dustproof seal lips integrated into the polymer coating
Highly abrasion-resistant, wear compensating, replaceable sealing system in SINT engineering polymer for standard or food-grade applications
Integrated inlet deflecting material away from seals and rollers, thus reducing wear
ATEX versions and food-grade version compliant with Regulation (EC) 1935/2004 available
Interchangeable actuators: manual, pneumatic, electric gear motor
Horizontal or vertical mounting
Standard sizes: 150 ~ 400mm (6” ~ 16”)

Benefits

No contamination due to carbon or stainless steel blade and valve frame lined with engineering polymer
Dust, pellet and granule-proof thanks to special component geometry
Highly abrasion-resistant due to replaceable SINT seal
No downtime for seal adjustment
Easy integration into the process thanks to light weight and eased handling
Quick fitting thanks to WAM and CEMA flange compatibility
High flexibility and time-saving maintenance due to interchangeable components
Better performance as a result of friction-free contact design (no waste of actuator torque to increase friction)
Safe operation thanks to total absence of pinch points and exposed moving parts
Optimised maintenance thanks to small number of components
Minimised residue and contamination thanks to low profile design
Ex-stock delivery

Options

ATEX versions and food-grade version compliant with Regulation (EC) 1935/2004
Interchangeable blade in carbon or stainless steel
Food-grade seals

Download

Here below you will find all documents regarding this product. Click “Other Languages” for translated versions.

Select all

Language

Name

Issue

Latest edition

Code

To download technical, and spare parts manuals, please log in with your username and password.

If you do not have an account, please click here to register.
