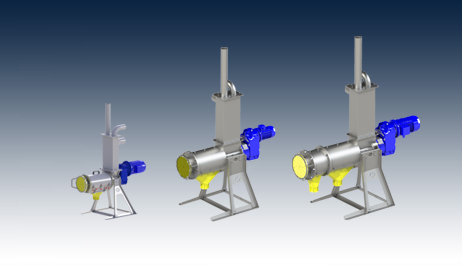

Wide performance range

High separation efficiency and high dry solids content

Perfectly self-cleaning SINT engineering polymer screw and screen

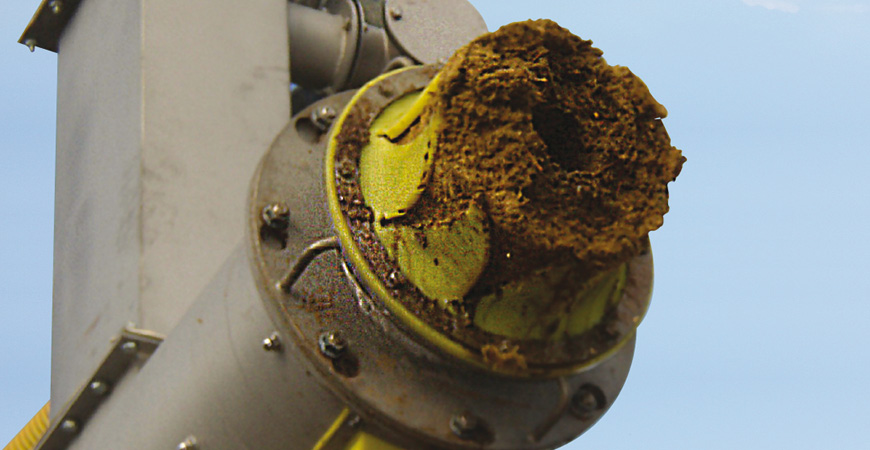

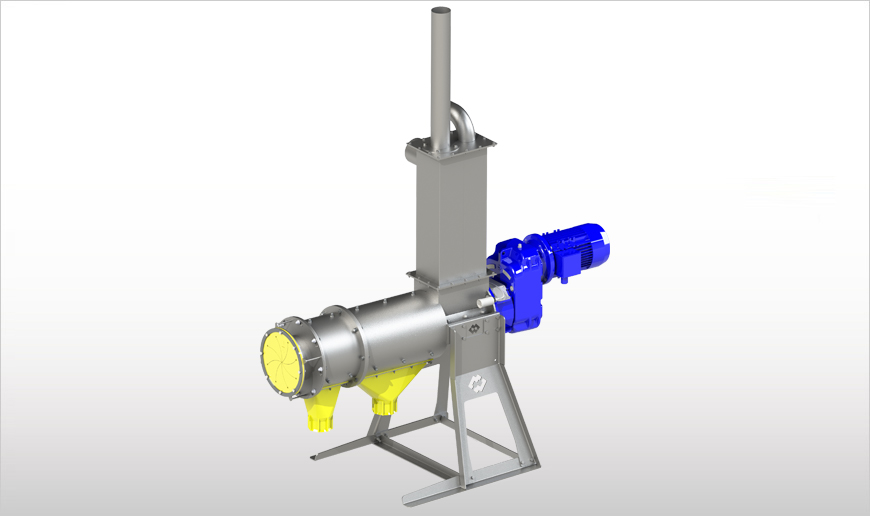

The SEPCOM Horizontal Screw Press Separator consists of a feeding section provided with a compensator tank and overflow hopper. The stainless steel casing includes a screw conveyor and a cylindrical screen basket that conveys and separates the solids from the liquid phase flowing through the screen, while the solid fraction is pushed towards the counter-pressure diaphragm outlet where a material plug forms. This enables automatic operation of the separator preventing the liquid phase from flushing through.

The drive unit consists of an electric motor and a gear reducer equipped with a splined output shaft which is directly coupled to the conveyor screw.

Function

SEPCOM Horizontal is a solids-liquid separating machine based on screw conveyor technology. Performing separation by both gravity and mechanical compression, the machine is designed to separate the liquid phase from the solid phase of a wide range of materials such as sludge, sewage, manure, vegetable and fruit processing waste and, in general, solids-liquid mixtures in which the percentage of liquid inside the solids may differ considerably. The separated solid phase and liquid phase can both be easily and cheaply handled.

Features

Modular screw manufactured from anti-wear SINT engineering polymer: simple in operation and cost-saving in spare parts
Durable, high performance self-cleaning screen basket
Suitable for continuous duty

Benefits

High performance wear-resistant screen basket
Significant overall management cost reduction of solids-liquid separation of digestate from anaerobic digester
Significantly reduced assembly and maintenance time
Affordable spare parts

Options

Various types of diaphragm outlet
Various types of SINT engineering polymer screws
Various screen basket sizes
