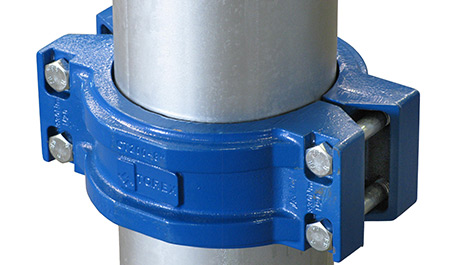

Can be rotated to provide easy access to nuts and bolts

Quick and easy to install

Suitable for all pipe thicknesses

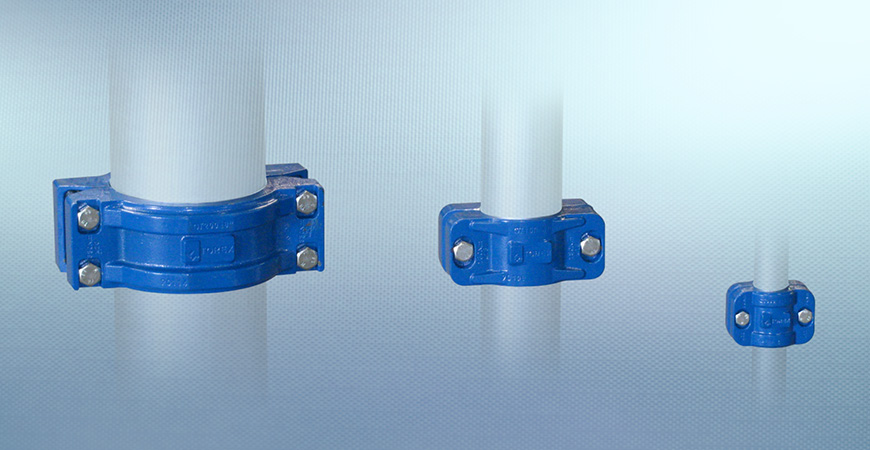

GT Pipe Couplings consist of two cast iron semi-casings with heavy-duty jaws set into the casing halves to secure the pipes together in a safe, quick and rigid way.
The two semi-casings are joined together by strong bolts and nuts positioned on the two ends.
Sealing is ensured by gaskets made from EPDM or food-grade SILICONE.

Function

GT Couplings are designed to join together two plain pipe ends on the same horizontal axis in a safe, quick and rigid way. The jaws set into the casing ensure solid grip and prevent the pipes from pulling out.

Features

Operating temperature: -40 ~ 110 °C (-40 ~ 230 °F)
Operating pressure: min. -0.5 bar / max. 7 bar (min. -7.2 PSI / max. 102 PSI)
Diameters ranging from 40 up to 200 mm (from 1½ in up to 8 in) to meet most common pneumatic line ducts

Benefits

Quick and easy to install
Reduced installation costs as compared to welded junctions
More flexible than welding (GT coupling detachable and re-usable allowing easy and quick modifications of the pipe duct, or can be installed in other pneumatic ducts)
Compact overall dimensions
No pressure drop along pneumatic line
No contamination due to silicone gasket
Suitable for all pipe thicknesses
GT coupling can be rotated to provide easy access to nuts and bolts
Maintenance-free

Options

EPDM gasket
Food-grade SILICONE gasket
