External Electric Motovibrators Explosion-Proof Range MVE-D

Sturdy FMEA design, premium materials

Introduction

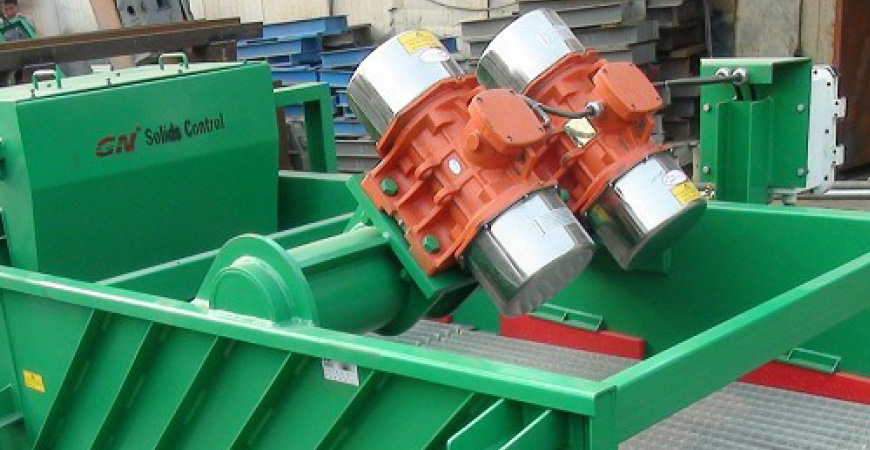

External Electric Motovibrators Explosion-Proof Range 1
Providinig from 800 to 5,500 kg of centrifugal force with 2, 4, 6 or 8 poles, the Explosion-Proof range of MVE-D External Electric Motovibrators is suitable for application on drilling fluid recovery systems in oil and gas extraction, as well as for sand dewatering equipment in fracking operations. MVE-D come with ATEX ExII2GD and ETL Class I, Division 1 and Class II, Division 1 certification, for application in the presence of potentially flammable dusts or gases for which explosion-proof design of the motor is specified. In addition, MVE-D have an international IECEx certification.

Especially designed for shale shakers for the oil and gas industry
Especially designed for shale shakers for the oil and gas industry
Certified for application in highly hazardous environments
Certified for application in highly hazardous environments
Matching footprint of the machines and equipment of leading OEMs in the oil industry
Matching footprint of the machines and equipment of leading OEMs in the oil industry

Technical Specs

Description

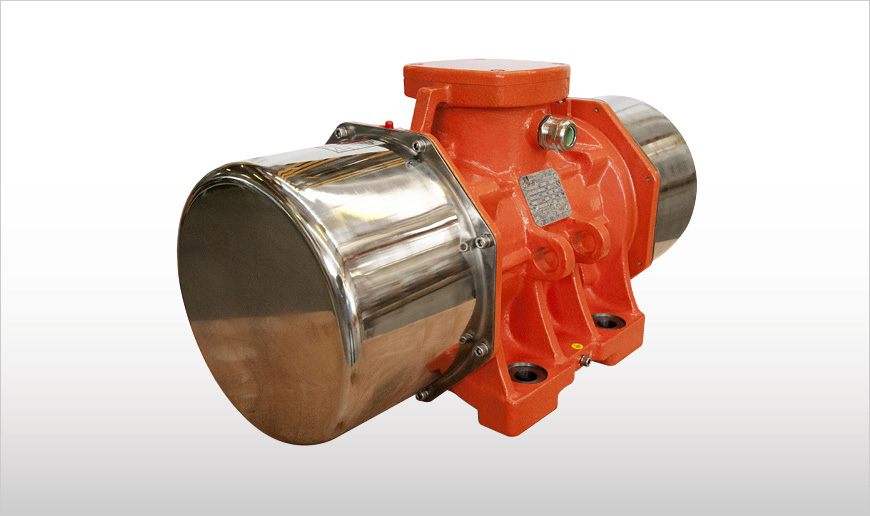

Explosion-Proof MVE-D External Electric Motovibrators consist of an electric motor housed in a sturdy FMEA-designed cast casing, with eccentric weights fitted on both shaft ends. Special design features and tight tolerances avoid that any possible explosion inside the motor will affect the external environment, making the explosion-proof MVE-D suitable for applications in the oil & gas industry where such a feature is mandatory.

External Electric Motovibrators Explosion-Proof Range

Function

Explosion-proof MVE-D External Electric Motovibrators can be used as flow aids on hoppers or silos to improve material discharge, or as drives for conveying, screening, dewatering or fluid recovery on vibrating machines, especially in the oil & gas industry, and occasionally in the recycling sector.
When the MVE is switched on a sinusoidal centrifugal force is provided by the rotation of the eccentric weights. With only one MVE fitted on a vibrating machine a rotating force is provided resulting in a circular movement of the machine. Two counter-rotating MVE fitted in parallel on the same machine provide a linear force resulting in a linear movement of the machine. The requirement of circular or linear movement depends on the application.
Most applications in the oil & gas sector use two MVE Motovibrators per machine to generate linear movement.


Features

  • Centrifugal force: 800 ~ 5,500 kg
  • Vacuum-impregnated windings using Class F insulating materials
  • Premium quality bearings
  • Sturdy FMEA-designed casing

Benefits

  • ATEX ExII2GD and ETL Class I, Division 1 and Class II, Division 1 certification for hazardous environments in presence of flammable dusts or gases
  • Wide range of centrifugal force covering all possible applications
  • Multiple voltages available matching electric specifications worldwide
  • Stainless steel mass covers

Options

  • 2, 4, 6, 8 poles three-phase

Accessories

  • PTC standard from size 60 (for smaller sizes on request)
